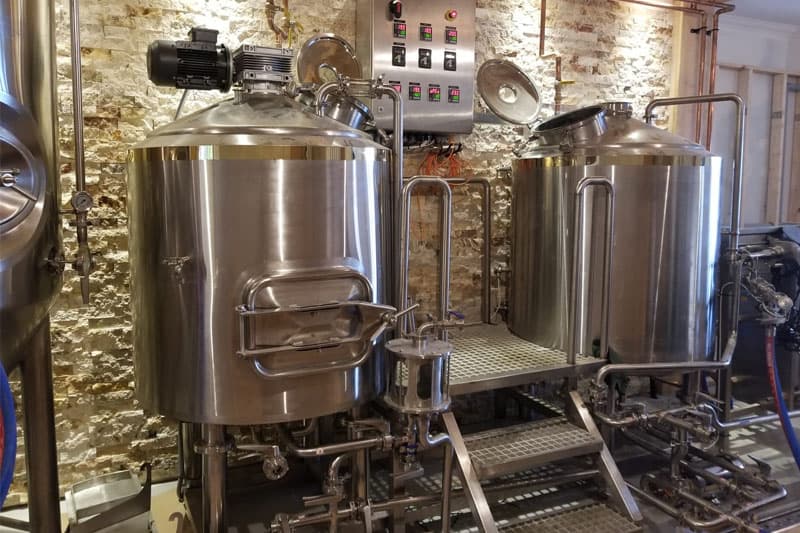

We have installed 5BBL craft microbrewery equipment in Canada. In restaurants, bars, and hotels, microbrewery equipment is generally used. Our client installed 5BBL microbrewery equipment in his bar. Micet Craft provided him with a complete turnkey solution.
5BBL Microbrewery Equipment Specifications
- Output/Brew: 5bbl
- Brew/Week: 2~6
- Output/Week: 14~30bbl
- Electric Supply: 3 Phase/380(220, 415,440…)v/50 (60)Hz
Single Phase/ 220(110, 240…)v/50(60)Hz - Heating Source: Electric/Steam
- Area Request: >30㎡
- Brewmaster: 1
5BBL Microbrewery Equipment Configuration
Malt Milling Unit
- Particle adjustable rolling crusher
- Flexible or steel auger for optional
5bbl Brewhouse Unit
- Mash tun, Lauter tun, Boiling Kettle, Whirlpool tun in various combination
- Hot water tank and cold water tank for optional in special combinations
- Infusion or decoction brewing methods are designed exactly
- Stainless steel or copper cladding is popular
- Two stages or a single-stage heat exchanger for wort cooling
- Completely stainless steel integrated work platform
- Sanitary and efficient wort pump
- All pipings and fittings
5bbl or 10bbl Fermentation Unit
- Standard stainless steel conical cylindrical fermentation tanks
- Single size as brewhouse is commonly used in restaurants
- Tanks quantity is exactly calculated by fermentation cycle for various beers
- All manholes, valves, pressure gauges, fittings, etc are included
Beer Filter Unit(optional)
- In restaurants or bars, beers are always served as craft beer without filtration
5bbl or 10bbl Bright Tank Unit
- Standard stainless steel bright tanks for beer maturation, conditioning, service, carbonation
- Single size as fermenter is commonly used in restaurant or bar
- Tanks quantity is exactly calculated for various beers and the function
- All manhole, valves, stone, gauges, fittings, etc are included
Cooling Unit
- Insulated glycol water tank with or without copper coil for glycol liquid holding and mixing
- Efficiency chillers or refrigerators with fry onto supply cooling energy
- Sanitary centrifugal pump for glycol water recycle among tanks and heat exchanger
- All pipes, fitting, insulation materials are included
Controlling Unit
- Electrical controlling cabinet with temperature, on-off controlling for brewhouse
- Electrical controlling cabinet with temperature, on-off controlling for cooling parts
- Temperature controller, thermocouple, solenoid valves, etc are included
- PLC with touch screen panel for special request
Beer Dispenser
- Beer dispensing columns and faucets for directly beer service
- Keg filling and washing machine
- Manually bottling machines for self-consumption
Other Facilities
- Portable CIP system for cleaning the tanks
- Steam boiler for brewhouse heating
- Water treatment for brew water
- Oil-free air compressor
If you want to know more about 5BBL microbrewery equipment, you can contact us directly. We are very happy to provide you with customized turnkey solutions.
