Micet Craft has launched the 3BBL Brewhouse. The Brewhouse is the most important part of the brewing equipment. It can also be said that it is the “heart” of the brewery. It can be used in microbrewery or nano-brewery. It can be used to brew a variety of craft beers. Micet Craft can offer customized turnkey solutions. Of course, we will also provide you with a brewing guide to help you make your first brew.
The Micet Craft can offer 3BBL Brewhouse in a variety of combinations. It produces between 300 and 500 barrels a year. Of course, we can make the equipment according to your imagination of a brewery. If you are interested in opening a brewery of your own, contact us. We are looking forward to working with you!
The Micet Craft can offer 3BBL Brewhouse in a variety of combinations. It produces between 300 and 500 barrels a year. Of course, we can make the equipment according to your imagination of a brewery. If you are interested in opening a brewery of your own, contact us. We are looking forward to working with you!
3BBL Brewhouse Advantages
- The Mash tank is equipped with a clamped level gauge for easy observation. All the lauter tun use milled sieve plates, which have higher filtration accuracy and better effect.
- The grains outdoor of lauter tun is equipped with a dustpan, which is convenient for grains out and cleaning. The drain outlet is separated from the discharge outlet, which is convenient for customers to discharge directly.
- According to the customer’s brewing process, the mash system can not only meet the feeding in the boiling kettle but also meet the feeding in the lauter tun.
- Our mash system can realize both natural filtration and pumping filtration. The lauter tun stirring motor is equipped with a frequency converter, which can realize the step-less speed regulation. The rake motor can also be designed up and down to lift the rake.
- To avoid too much water vapor in the mashing area, the kettle is equipped with an indoor exhaust device or outdoor exhaust device depends on customer needs.
- Equipping with a special inline hop filter to make the wort clearer before fermenting.
- The pump motor uses ABB or JLEM American brand, long service life, and low sound.
- The mash tun is equipped with a grist hydrator to ensure uniform malt moistening.
- The brewhouse piping design is equipped with a cold and hot water mixing device, thermometer, and flow meter, which can evenly mix the cold and hot water before mashing.
- The bottom of lauter tun is equipped with a wort collection loop and an under-the-flush device.
- Equipping with wort balance tank to check the clarity of wort and protect the sieve plate.
- Equipping with sparge arm and double CIP cleaning loop on top of the tank.
- Milling sieve plate, wedge-shaped gap 0.7mm, 4mm thickness, can be disassembled and cleaned, and the bottom is supported and fixed.
- The HLT was designed with a return port, CIP cleaning port, and water inlet, which can realize the recovery and utilization of hot water between the heat exchanger.
- The working platform adopts water leakage and a non-slip design.
- Brewhouse manways always use full glass manway.
3BBL Brewhouse Standard Configuration
- 2, 3, or 4 vessel systems available
- All piping is TRC fitted, including every elbow, tee, and curve in the system; allows for a 100% sanitary system
- Constructed of 304 or 316 stainless steel
- All pumps in the brewhouse include 100% stainless steel pumps AND motors
- Rake System have both non-lifting and hydraulic lifting optional
- Floor mounted, vessel or ceiling mounted grist cases available
- Flat bottom or conical bottom lauter tun
3BBL Brewhouse Optional Configuration
- Automation systems
- Complete Grain Mill System
- Various Stainless Steel Finishes
- Our standard beer brewing system comes with a 2B mill finish; other finishes are available including:Polished/Brushed/Mirror finish/Pickling passivationCopper Clad and/Copper accented
3BBL Brewhouse Specification
- Effective volume: 3BBL
- Total volume: 3.75BBL
- Size: 960*2100mm
- Material: SUS304/SUS316/red Copper
- Heating method: Electric/steam/direct fire heating
- Control system: PLC Simens or PID Schneider/ABB brand
- Heating area: 0.5㎡
- Power: 15-70 Kw depends on the size
- Voltage: 3 phase/380(220, 415,480…)v/50(60)Hz
Single Phase/220(110, 240…)v/50(60)Hz - Brewing batch: 6-12 brew/week
- Work pressure: inner jacket 0.4MPa
cooling jacket 0.5Mpa - Design pressure: inner jacket 0.2MPa
cooling jacket 0.3Mpa - Brewmaster quantity: 1
Note: 1 hl=100liter; 1 Gallon=3.7854 liter; 1 Barrel(BBL) =117Liter

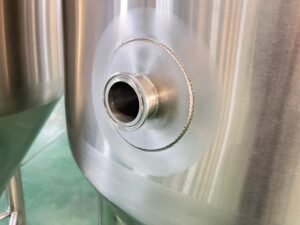

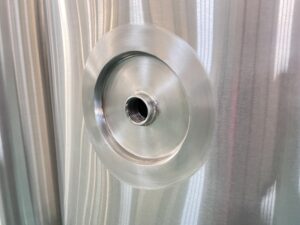

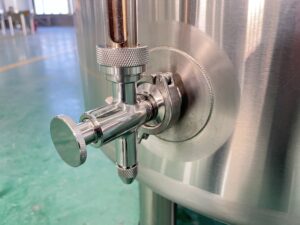

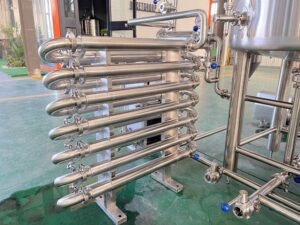

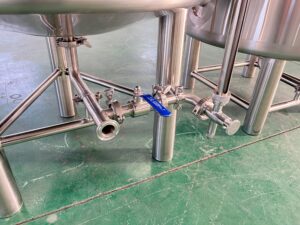

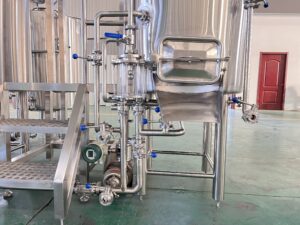

3BBL Brewhouse Details
Get 3BBL Brewhouse price
If you want to know more about the price of 3BBL Brewhouse, you can contact us. Micet Craft will provide you with the most complete turnkey solution within 24 hours. looking forward to your cooperation!
