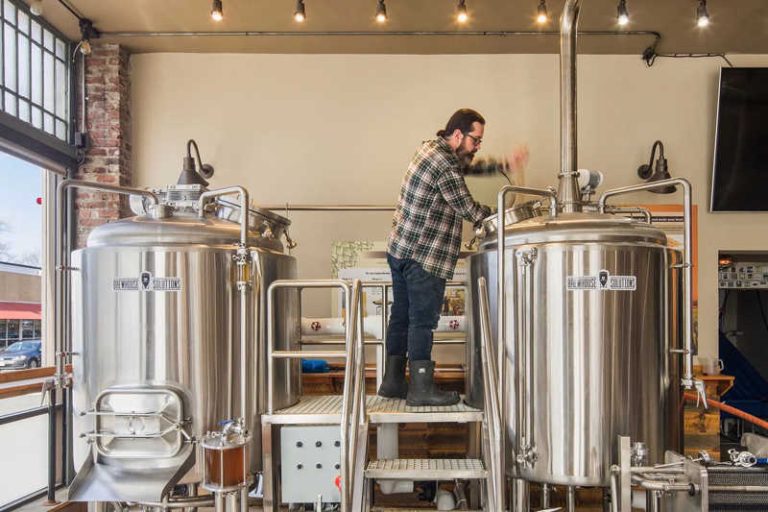

The 500l brewhouse can produce 500l batches of beer and can brew 1-4 batches per day depending on the vessel configuration. At the heart of any brewery is efficient and consistent brewhouse equipment. Of course, the heating method of the 500l brewhouse is also very important. We can provide three heating methods: electricity, direct fire and steam.
Micet Craft is a professional brewery equipment manufacturer, we can provide customers with complete turnkey services, including detailed brewery layout and equipment drawings, etc. Our experienced technical team will be at your service every step of the way, from designing commercial brewing equipment layouts, individual drawings, and fabrication, to installation, commissioning, and on-site training. Regardless of space, time, or budget challenges, we can deliver and install the equipment you need to maximize beer production while maintaining the integrity of your brewing process.
Micet Craft is a professional brewery equipment manufacturer, we can provide customers with complete turnkey services, including detailed brewery layout and equipment drawings, etc. Our experienced technical team will be at your service every step of the way, from designing commercial brewing equipment layouts, individual drawings, and fabrication, to installation, commissioning, and on-site training. Regardless of space, time, or budget challenges, we can deliver and install the equipment you need to maximize beer production while maintaining the integrity of your brewing process.
500L Brewhouse Advantages
- The Mash tank is equipped with a clamped level gauge for easy observation. All the lauter tun use milled sieve plates, which have higher filtration accuracy and better effect.
- The grains outdoor of lauter tun is equipped with a dustpan, which is convenient for grains out and cleaning. The drain outlet is separated from the discharge outlet, which is convenient for customers to discharge directly.
- According to the customer’s brewing process, the mash system can not only meet the feeding in the boiling kettle but also meet the feeding in the lauter tun.
- Our mash system can realize both natural filtration and pumping filtration. The lauter tun stirring motor is equipped with a frequency converter, which can realize the step-less speed regulation. The rake motor can also be designed up and down to lift the rake.
- To avoid too much water vapor in the mashing area, the kettle is equipped with an indoor exhaust device or outdoor exhaust device depends on customer needs.
- Equipping with a special inline hop filter to make the wort clearer before fermenting.
- The pump motor uses ABB or JLEM American brand, long service life, and low sound.
- The mash tun is equipped with a grist hydrator to ensure uniform malt moistening.
- The brewhouse piping design is equipped with a cold and hot water mixing device, thermometer, and flow meter, which can evenly mix the cold and hot water before mashing.
- The bottom of lauter tun is equipped with a wort collection loop and an under-the-flush device.
- Equipping with wort balance tank to check the clarity of wort and protect the sieve plate.
- Equipping with sparge arm and double CIP cleaning loop on top of the tank.
- Milling sieve plate, wedge-shaped gap 0.7mm, 4mm thickness, can be disassembled and cleaned, and the bottom is supported and fixed.
- The HLT was designed with a return port, CIP cleaning port, and water inlet, which can realize the recovery and utilization of hot water between the heat exchanger.
- The working platform adopts water leakage and a non-slip design.
- Brewhouse manways always use full glass manway.
500L Brewhouse Standard Configuration
- 2, 3, or 4 vessel systems available
- All piping is TRC fitted, including every elbow, tee, and curve in the system; allows for a 100% sanitary system
- Constructed of 304 or 316 stainless steel
- All pumps in the brewhouse include 100% stainless steel pumps AND motors
- Rake System have both non-lifting and hydraulic lifting optional
- Floor mounted, vessel or ceiling mounted grist cases available
- Flat bottom or conical bottom lauter tun
500L Brewhouse Optional Configuration
- Automation systems
- Complete Grain Mill System
- Various Stainless Steel Finishes
- Fermentation tank
- Bright tank
- Heat exchanger: hanging type Nuanbao Brand
- Platform: Normal standard or water leaking type
- Pumps brand: ABB or JLEM
- Optional Auto-On Timer for Hot Liquor Tank
- Our standard beer brewing system comes with a 2B mill finish; other finishes are available including:Polished/Brushed/Mirror finish/Pickling passivationCopper Clad and/Copper accented
500L Brewhouse Specification
- Effective volume: 500L
- Total volume: 625L
- Size: 960*2200mm
- Material: SUS304/SUS316/red Copper
- Heating method: Electric/steam/direct fire heating
- Control system: PLC Simens or PID Schneider/ABB brand
- Heating area: 0.65㎡
- Power: 15-70 Kw depends on the size
- Voltage: 3 phase/380(220, 415,480…)v/50(60)Hz; Single Phase/220(110, 240…)v/50(60)Hz
- Brewing batch: 6-12 brew/week
- Work pressure: inner jacket 0.4MPa; cooling jacket 0.5Mpa
- Design pressure: inner jacket 0.2MPa; cooling jacket 0.3Mpa
- Brewmaster quantity: 1
Note: 1 hl=100liter; 1 Gallon=3.7854 liter; 1 Barrel(BBL) =117Liter
500L Brewhouse Video
Play Video about 300l brewhouse
Get 500L Brewhouse price
If you want to know more about the 500l brewhouse, you can always contact us. Micet Craft can provide you with the best beer brewing equipment. You can tell us the daily output and functionality you need and our team of experts will help you expand your current system or build a new project from scratch and provide you with a professional turnkey solution. Micet Craft will be your most loyal partner on the road to opening a brewery.
