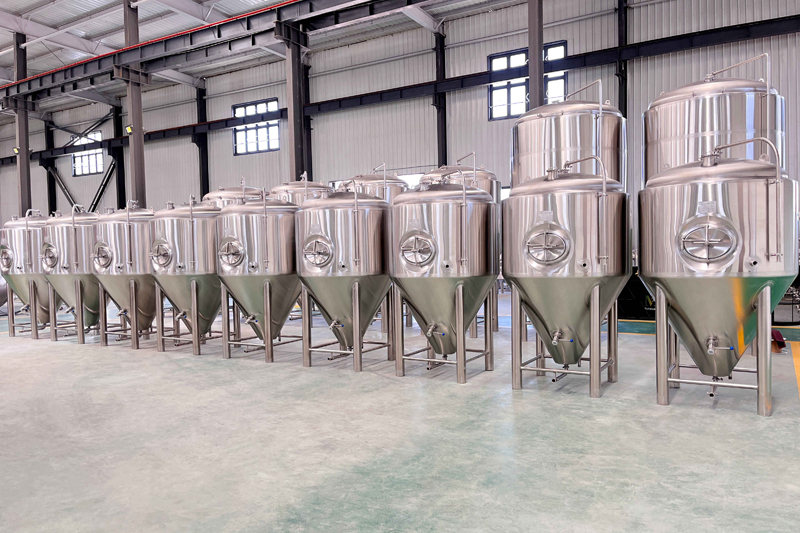

Customized 10 10BBL fermenters for a Mexican customer. We increased the cone angle and diameter of the fermenter and lowered its height. This not only accommodates the lower room height, but also allows the fermenter to be transported standing up in the container to save shipping costs.The customer is very satisfied and micet supports customized services and technical support.
Diapositiva anterior
Diapositiva siguiente
The main configuration of 10BBL fermenter:
- SUS304
- 25% head space
- Dimpled cooling jacket
- Dry hops adding port
- Rotation racking arm
- CIP cleaning balls
- Pressure gauge
- Temperature control method: PT100
- sewage outlet
- side manway
- Design pressure 0.4MPa (4 Bar)
- Working pressure 0.2Mpa (2 Bar)
Get a turnkey solution for brewery equipment
If you plan to open or expand the brewery, you can contact Micet Craft directly. Our engineers will design and manufacture brewery equipment according to your brewing process. Of course, we will also provide you with a complete turnkey solution. Also, if you plan to expand the brewery, we will provide you with customized solutions.
